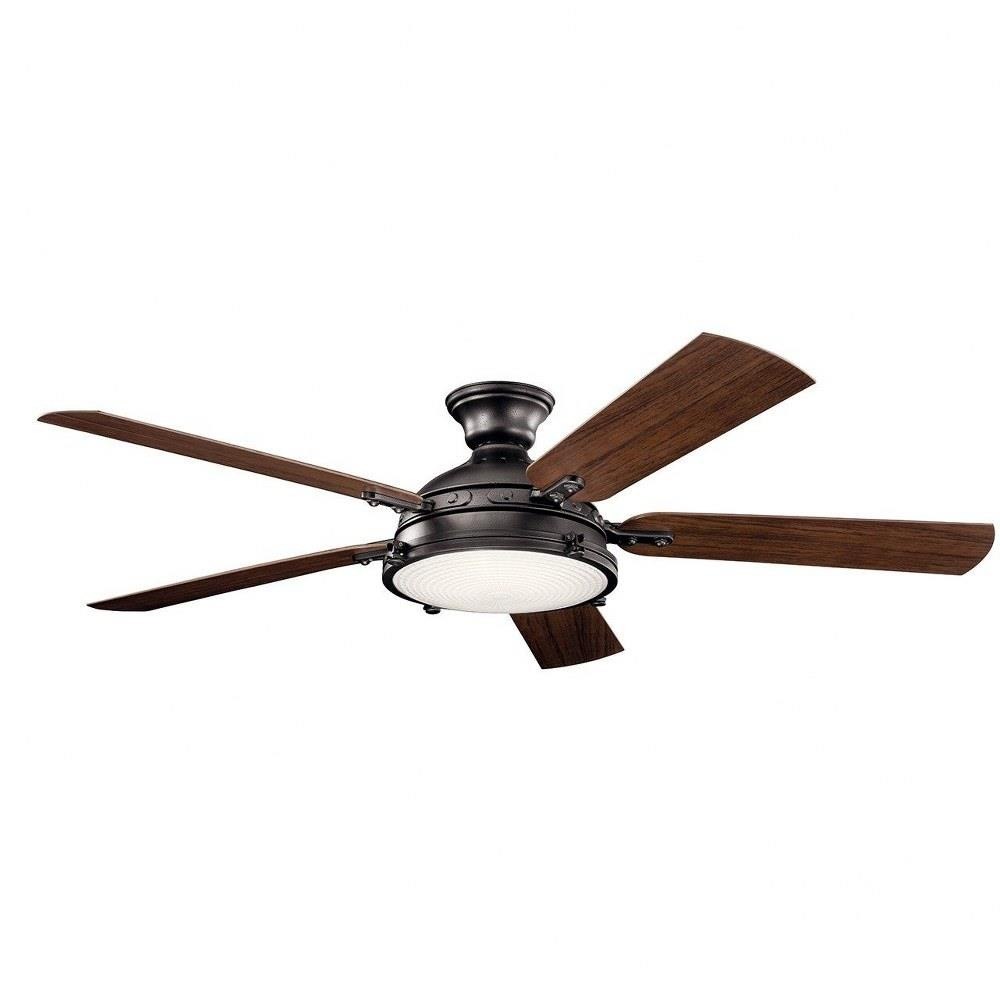

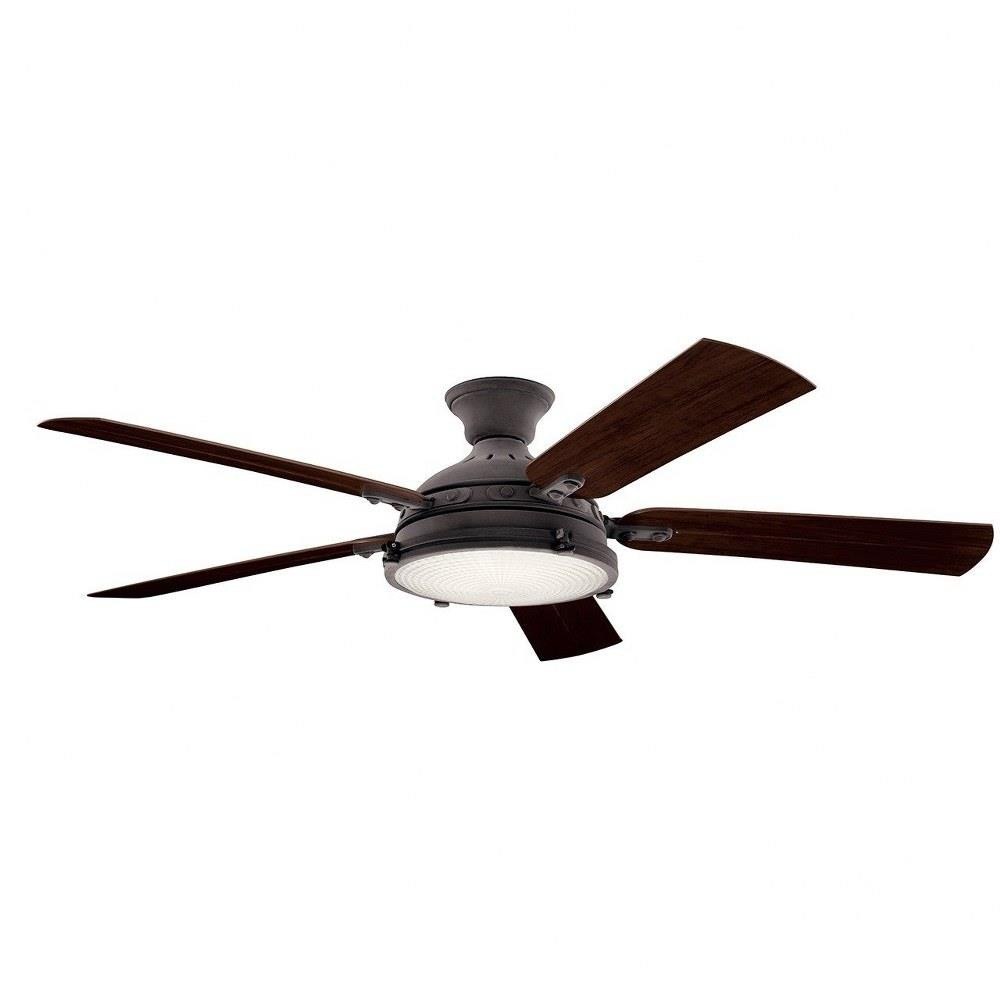

This rustic 60 inch Hatteras Bay(TM) Patio LED fan is a charming accent piece that will complement any space. Featuring an Anvil Iron finish and a broad Fresnel Lens, this design is sure to leave an impression in your home.

• Rod Length(s): 1-12
• Dimmable: Yes

Hatteras Bay Indoor/Outdoor Ceiling Fan Dimensions

• Diameter: 60"

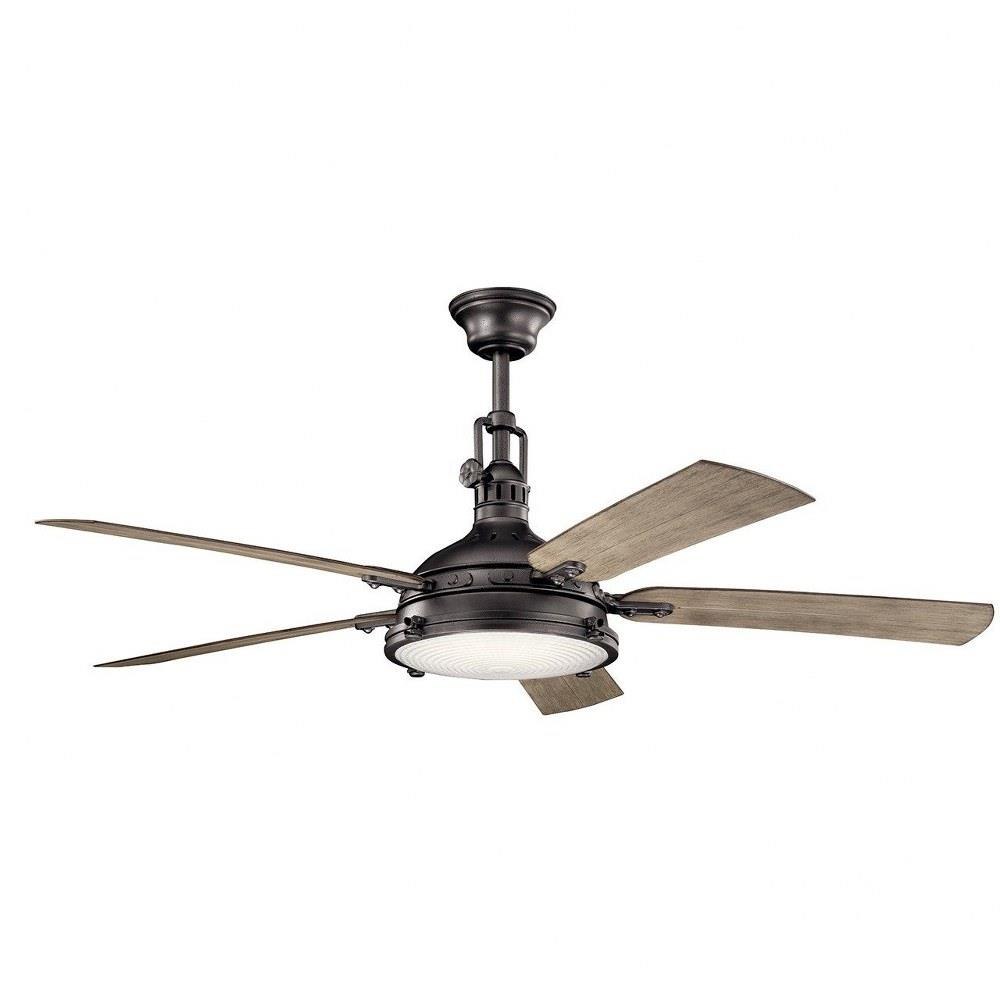

• Height 1: 17.50" (From Ceiling to Bottom of the light kit when using supplied 6" down rod). Requires a minimum ceiling height of 8' 6" for proper safety clearance with 6" rod, 8' ceiling when installed using the flush mount kit.
• Blade Drop 1: 13"

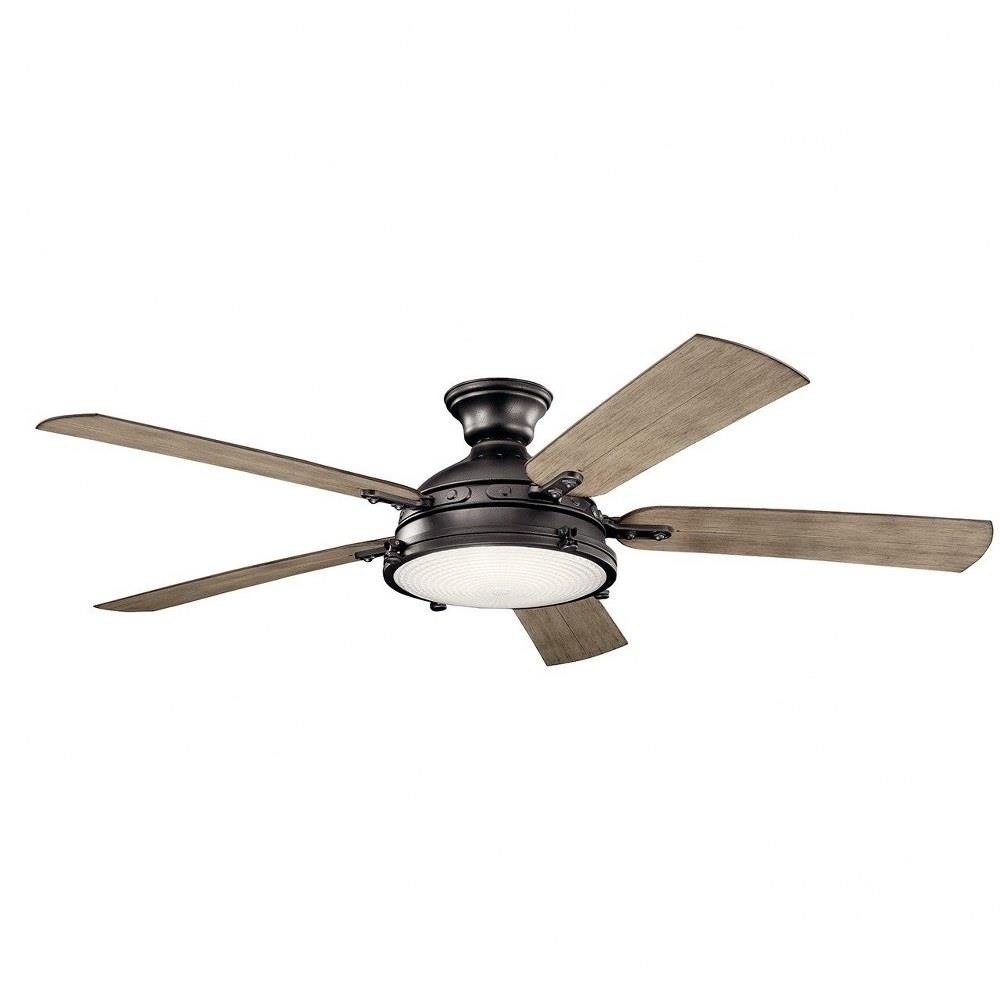

• Height 2: 12.25" (From Ceiling to bottom of the light kit when using the supplied flush mount kit)
• Blade drop 2: 7.75"
• Housing Width 6.75"
• Canopy Diameter 5.75"
• This ceiling fan can be mounted on a vaulted ceiling up to 30°. Slope adapter available up to 60° 337005AVI
• 6" 1"OD down rod and flush mount kit included

Motor Information

• Strong efficient AC 188 X 25 MM Motor.
• 3 speeds forward and reverse.
• The motor is covered under a limited lifetime warranty and is available in 3 designer colors.
• The motor uses an efficient 71 watts at the high speed.

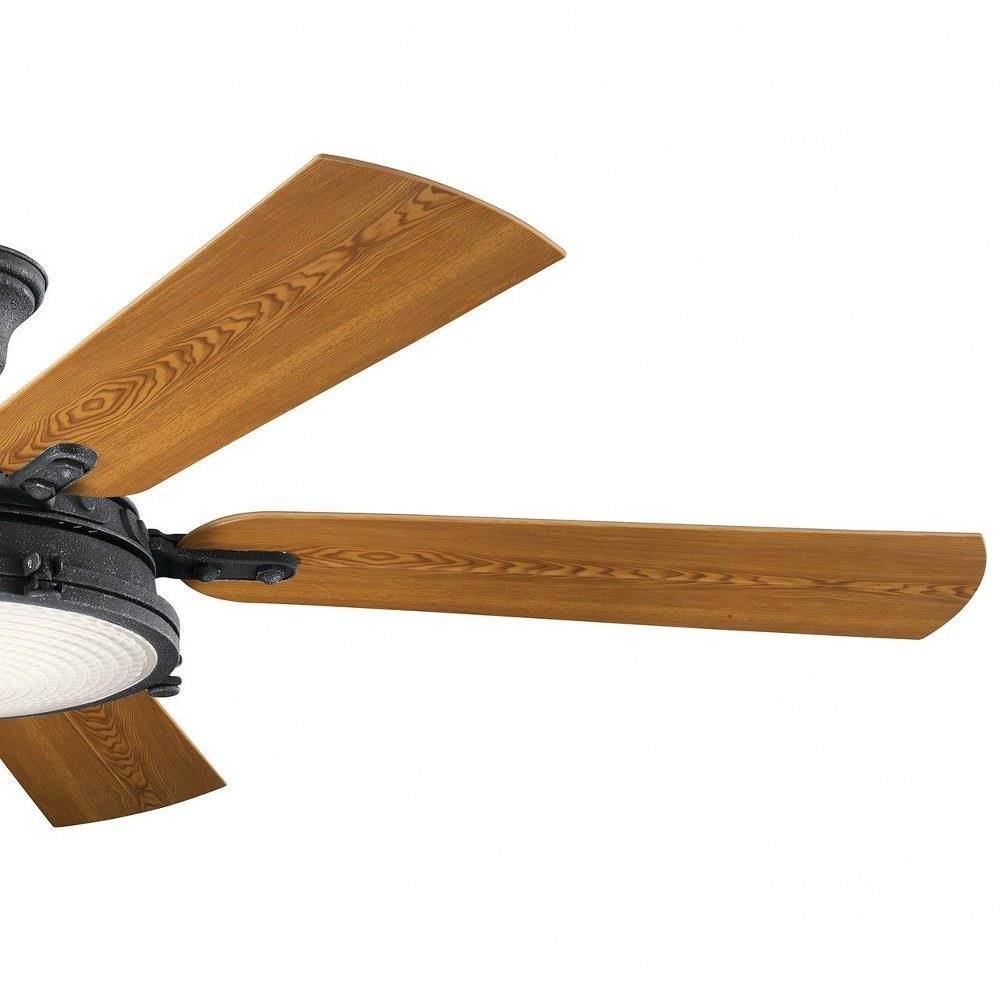

Fan Blades

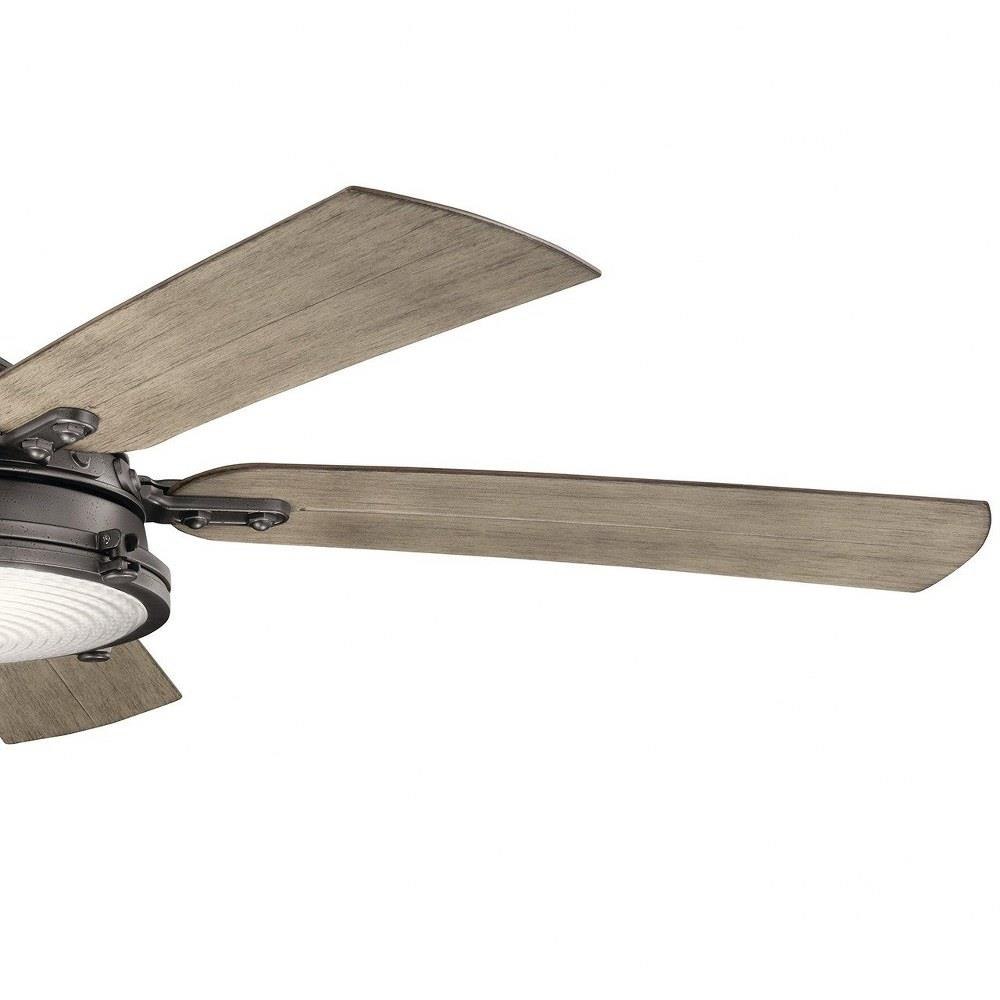

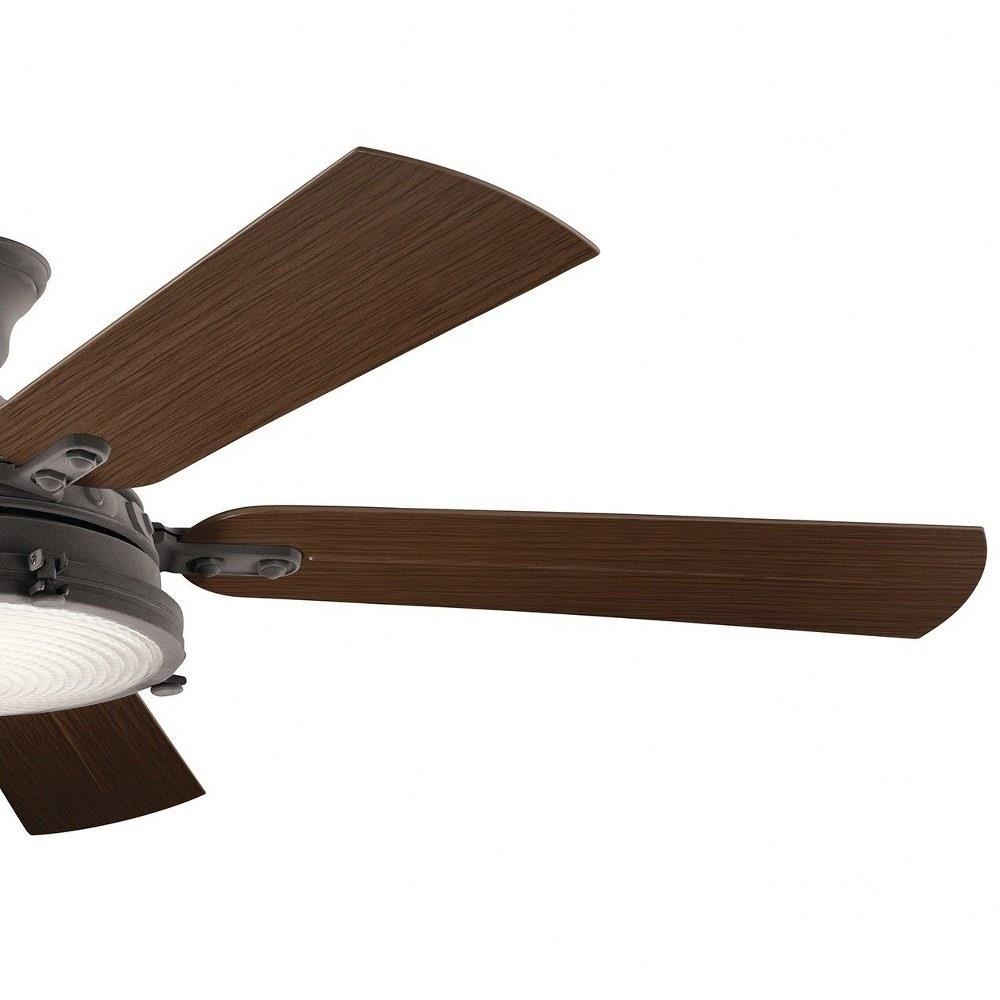

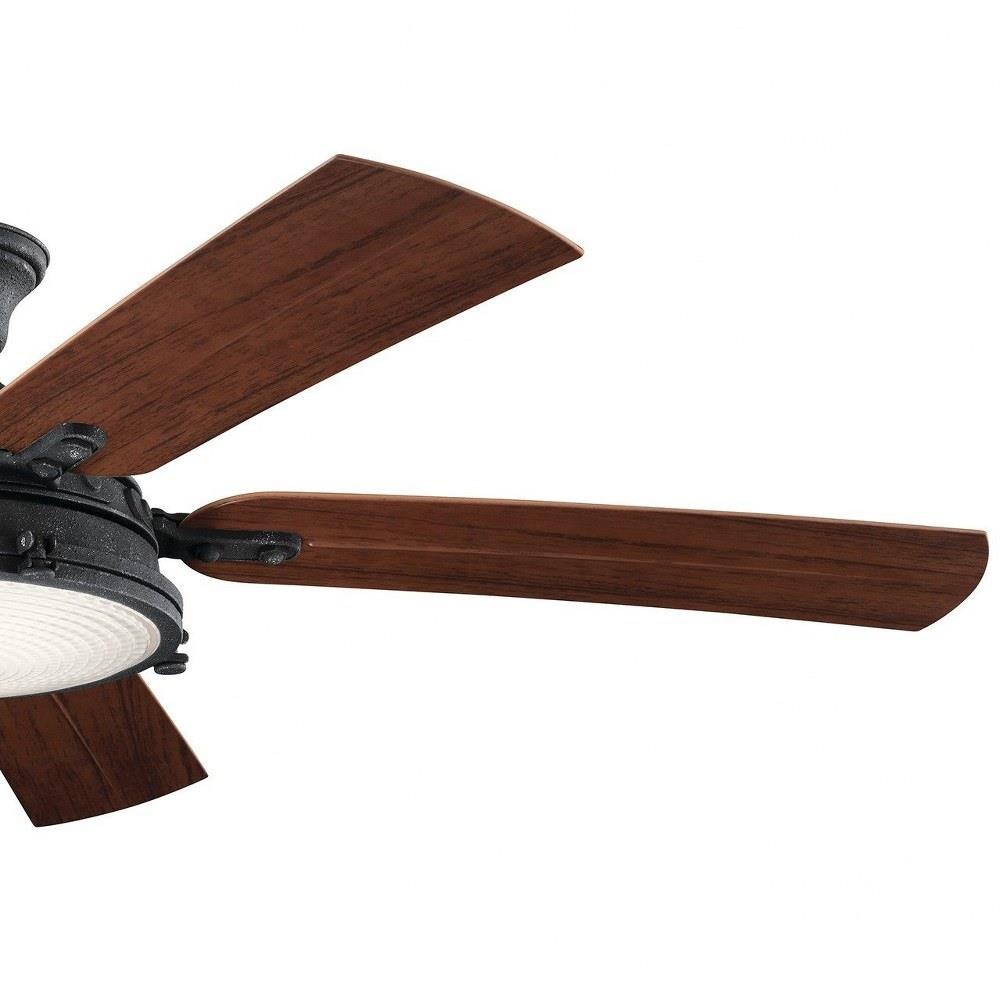

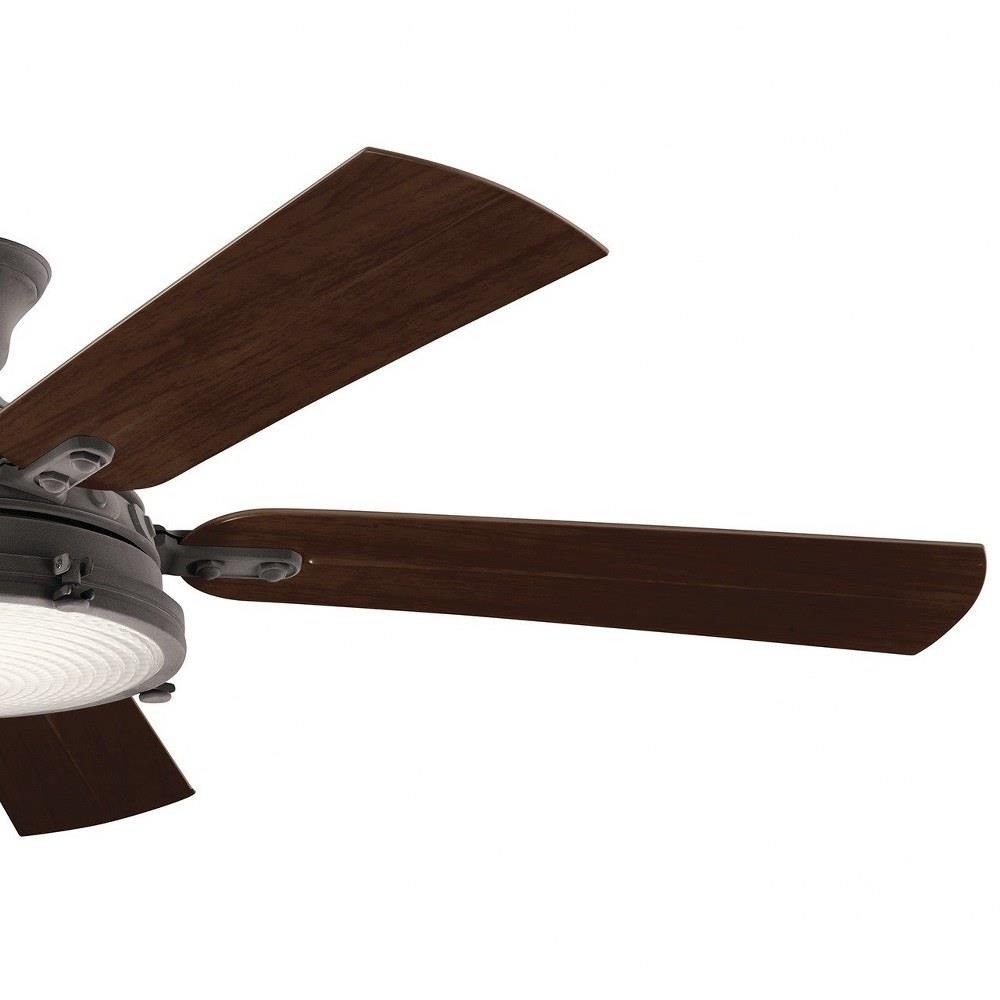

• Hatteras Bay in Anvil Iron comes with 5 reversible blades, Distressed Antique Gray and Walnut finishes.
• The blades feature a 12° pitch, creating a optimal airflow of 6282 CFM when used on the highest speed.
• Constructed of ABS material for maximum weather protection.

Control

• Full function Cooltouch Wall control system included.
• 3 speed forward and reverse.
• Full function wall transmitter optional 370038MULTR

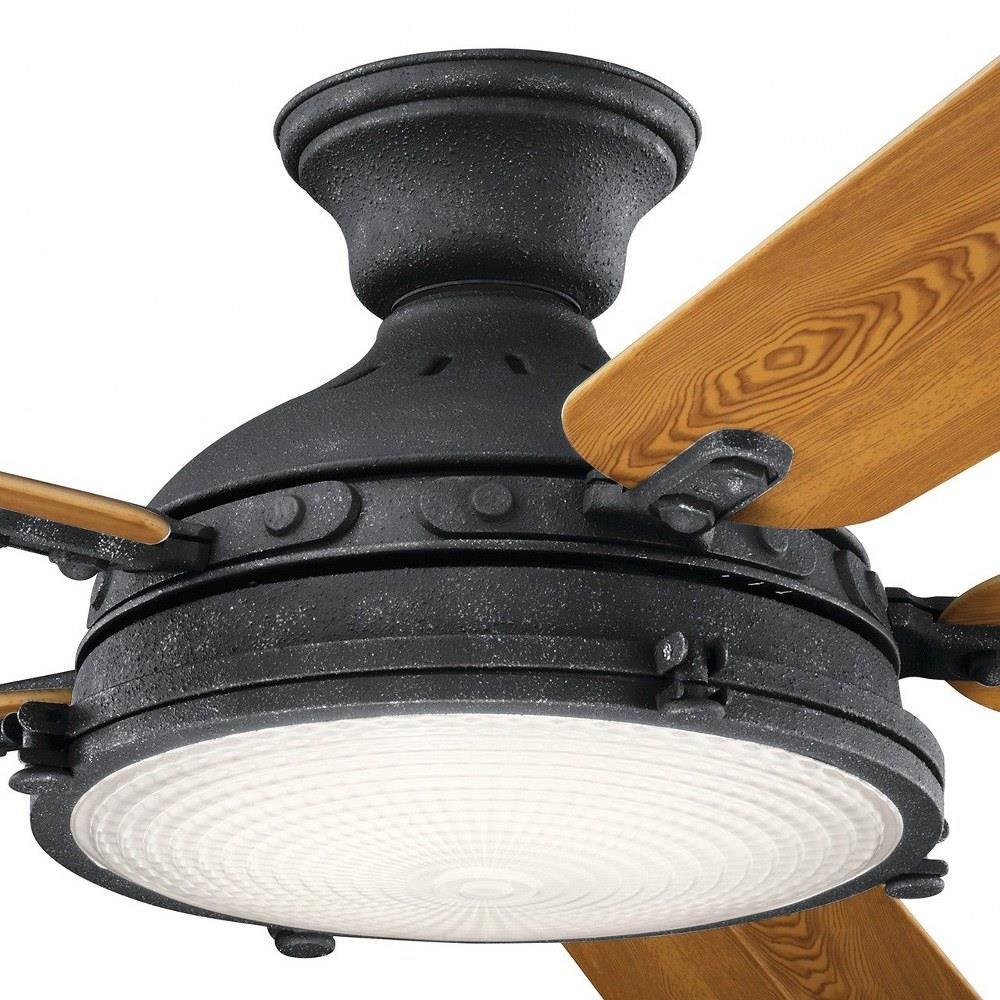

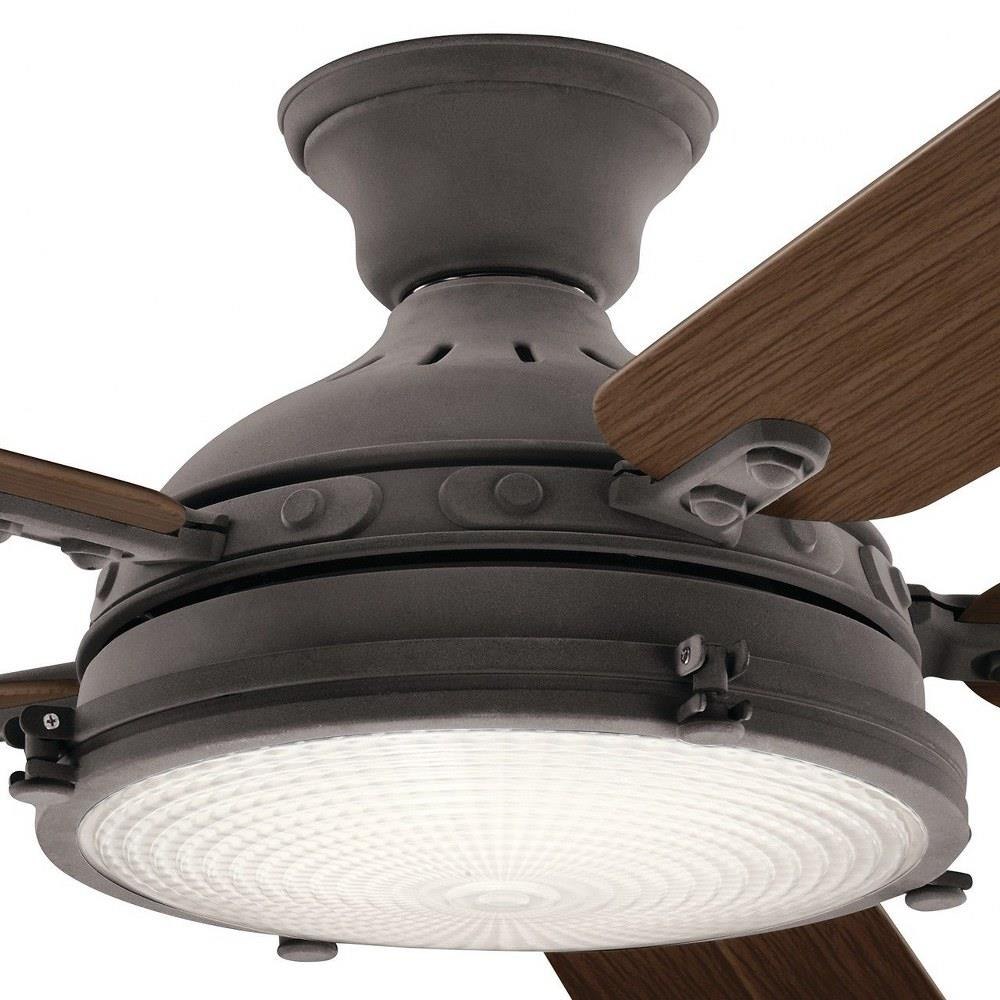

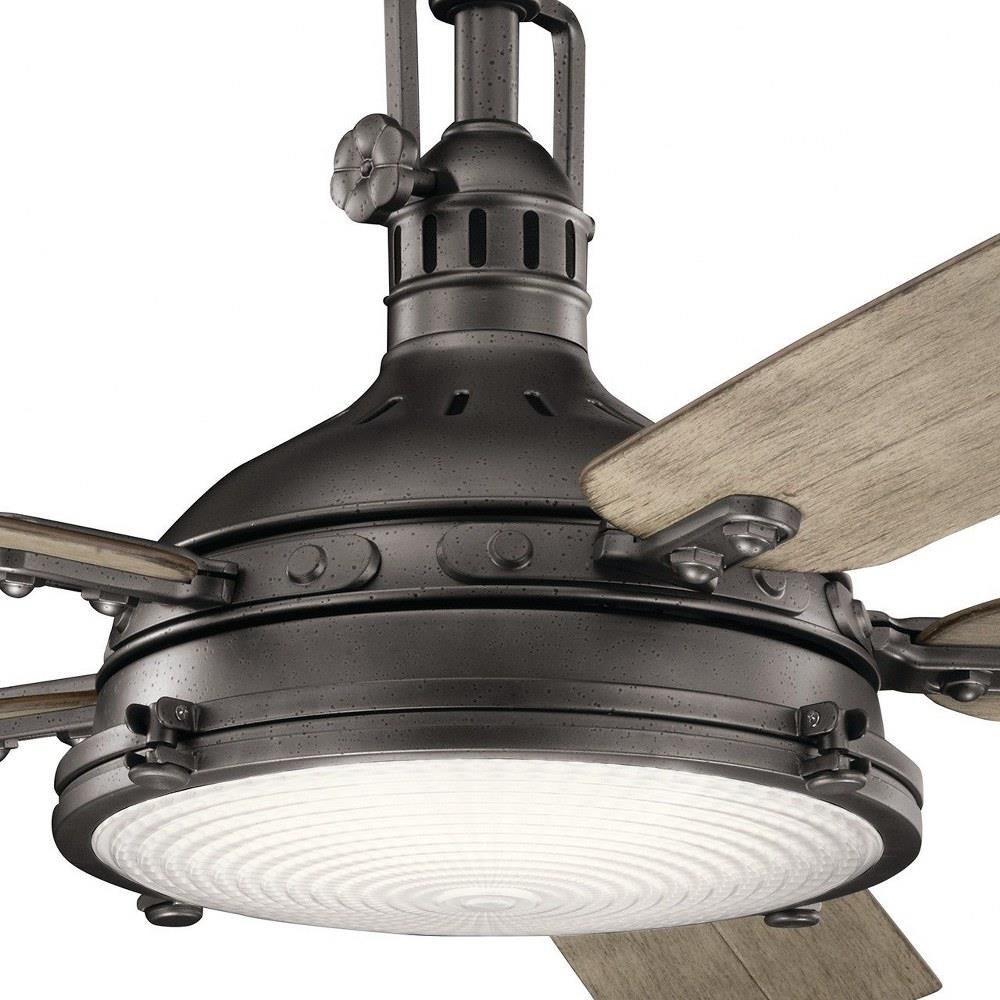

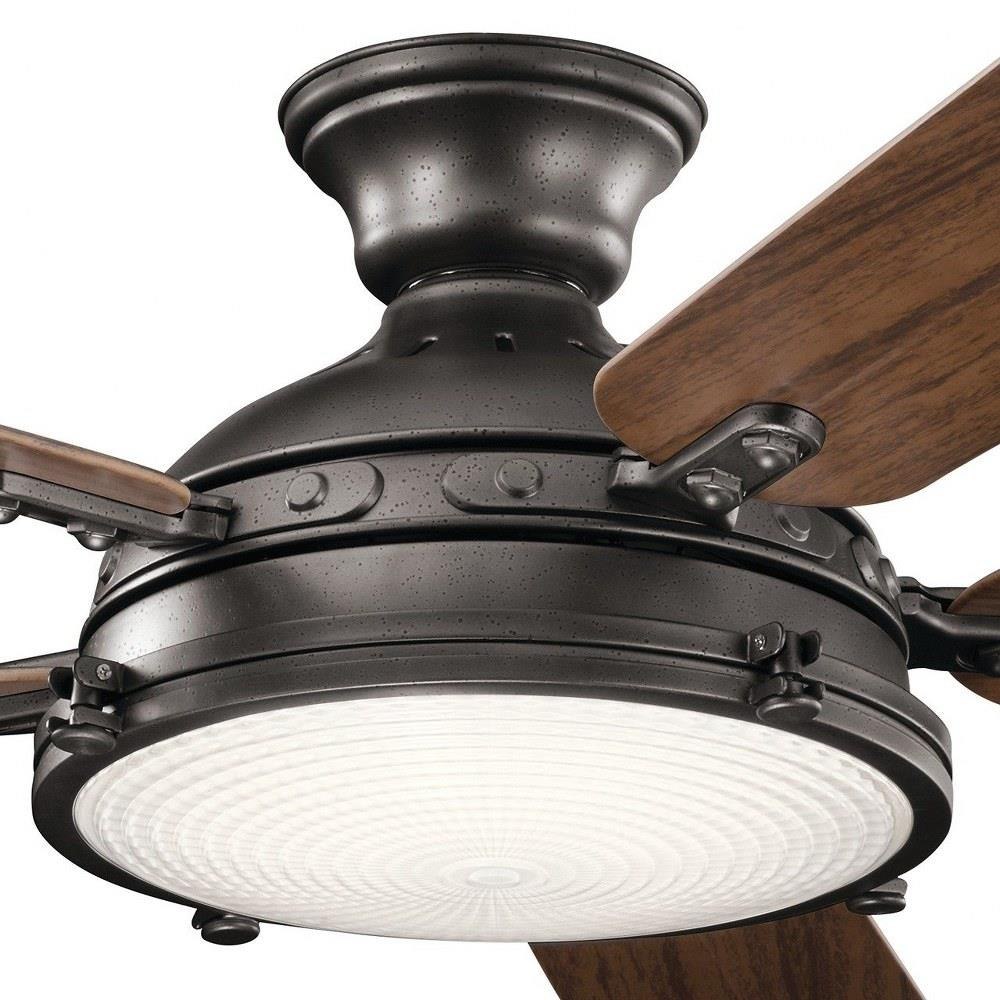

Light Kit

• Led Light kit included
• Wattage: 23
• Lumens: 1600
• CRI 80
• Color Temperature: 3000K

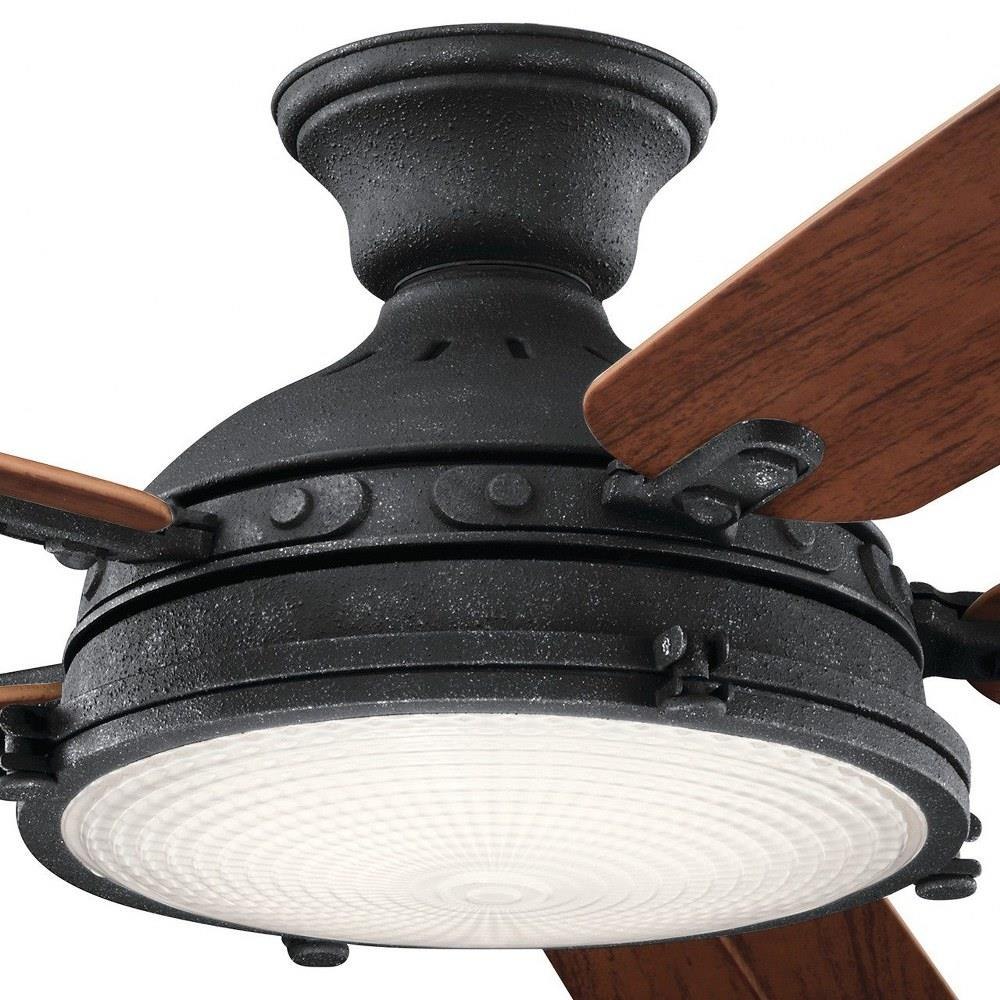

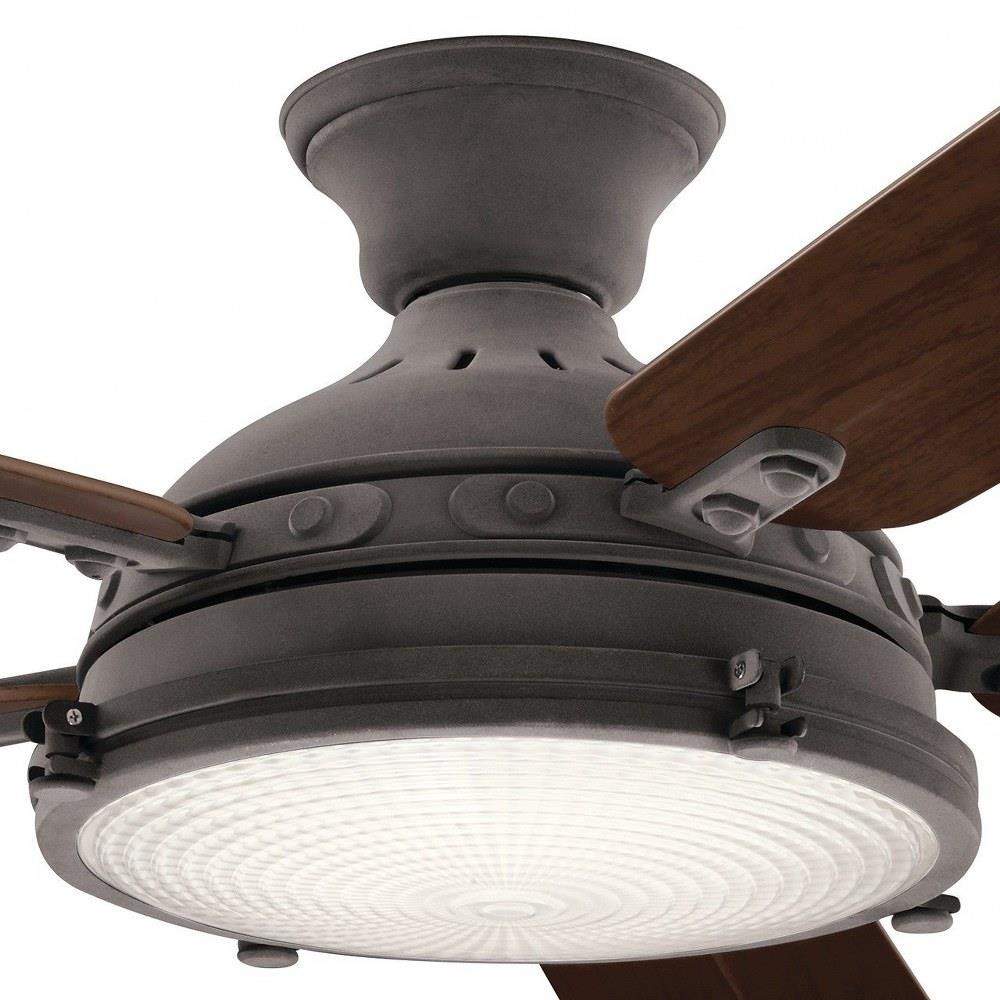

• Fresnel Lens
• Led lamp is dimmable and replaceable

Room Suggestion

• The Hatteras Bay is a good choice for large indoor or outdoor spaces that are over 400 square feet. Such as a great room, family room, main suite, bedroom, loft, kitchen or gym. As well as patio, sunroom, pergolas, porch and deck areas.

Features

• UL listed for indoor and outdoor damp locations

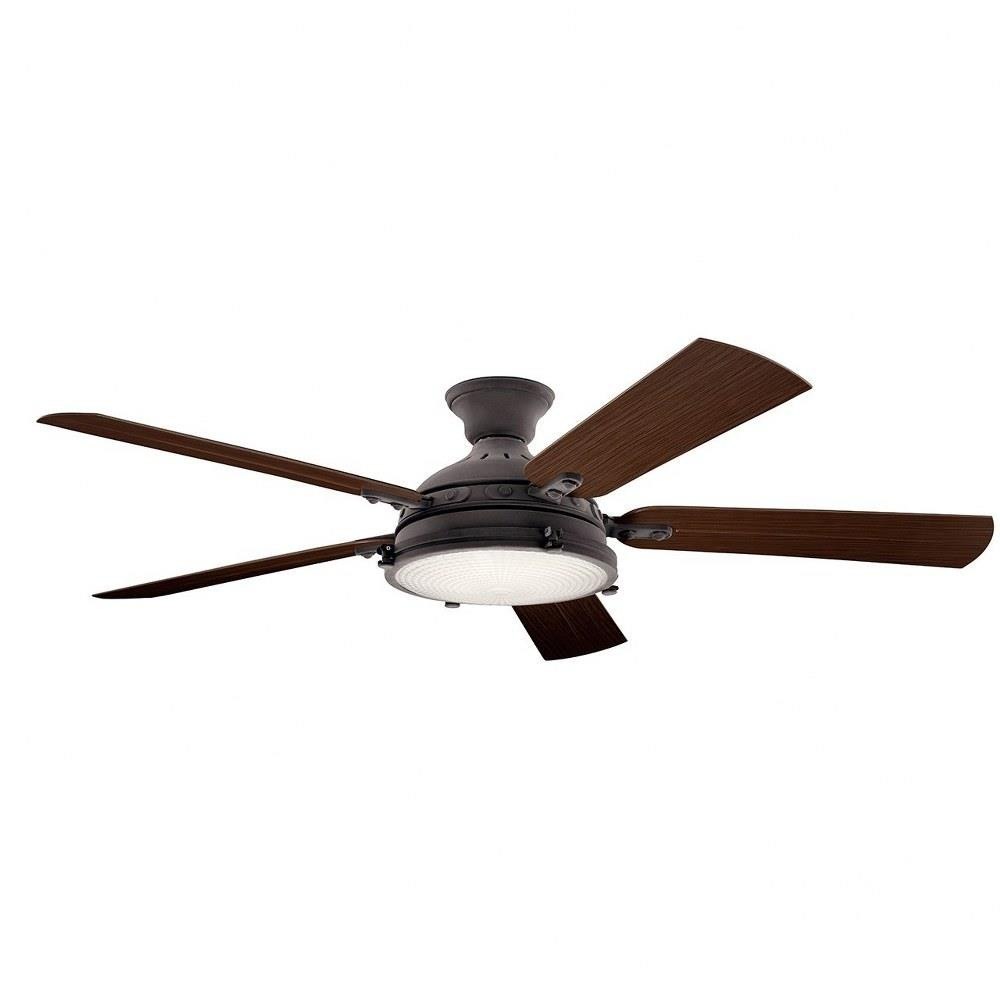

• Available in 3 different finishes, Anvil Iron, Distressed Black and Weathered Zinc.
• Large ceiling fan with excellent air movement
• Modern Rustic design with coastal and nautical elements.
• Indoor or Outdoor rated
• Remote control included.
• Hatteras Bay 60" hanging weight is 32.5 lbs (reinforced box must be used)

Seasonal Settings

• Reverse your fan blade direction with the change of seasons for maximum comfort and energy savings.
• Summer Setting - When looking directly up at your fan from below, the blades should be moving in a counter clockwise direction, pushing cool air down.
• Winter Setting - When looking directly up at your fan from below, the blades should be moving in a clockwise direction, pushing air upwards, circulating warm air from ceilings.
