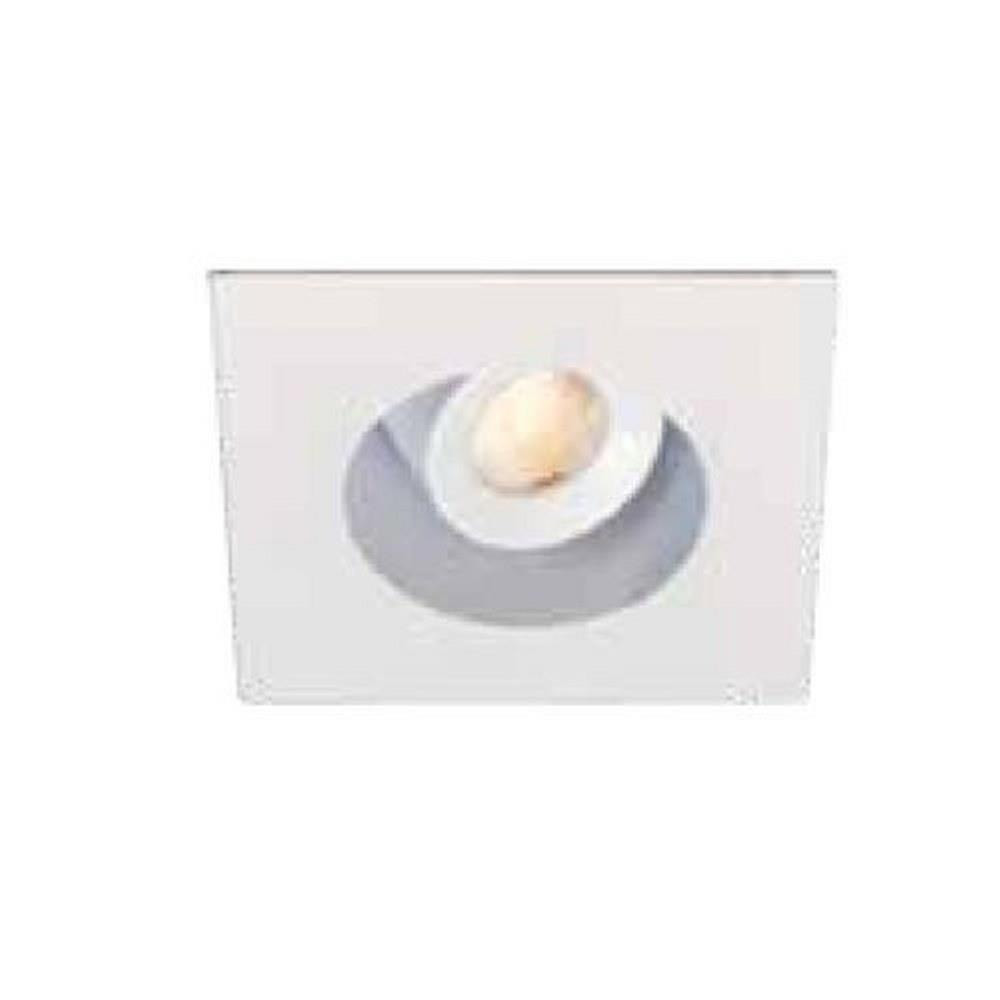

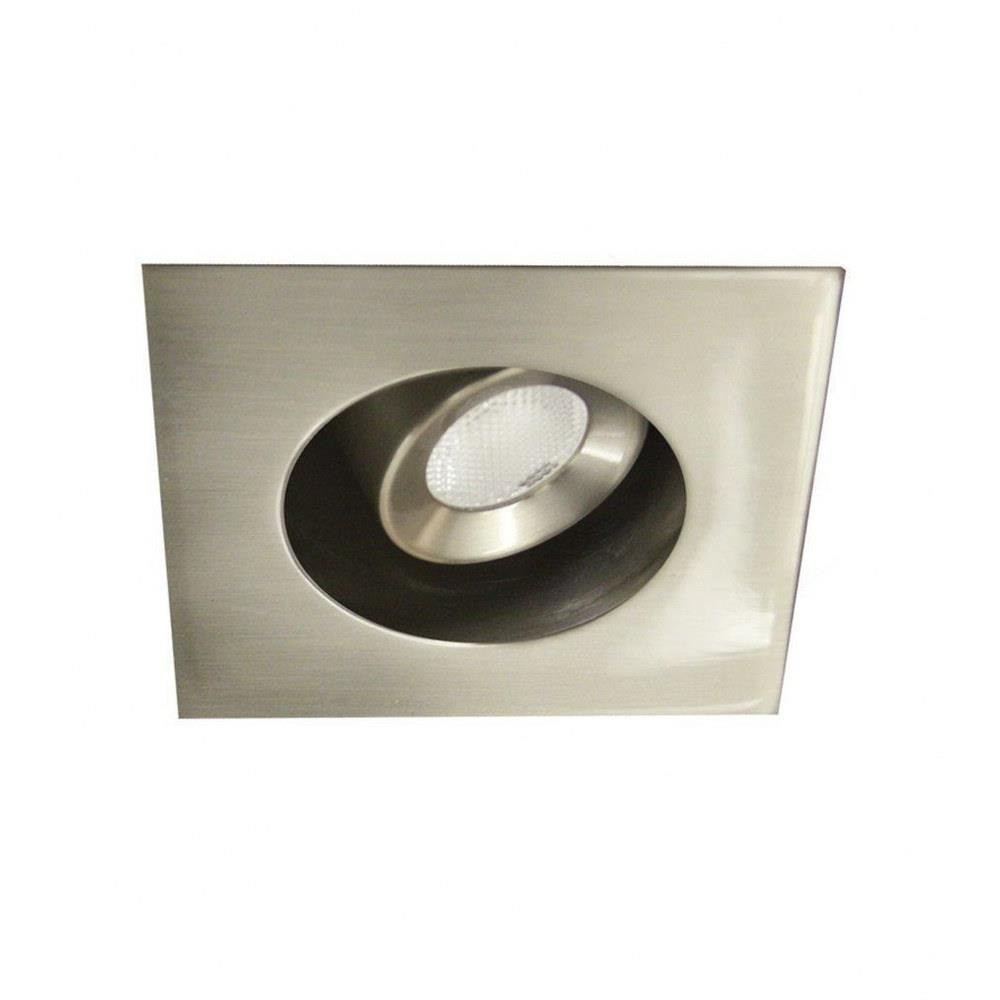

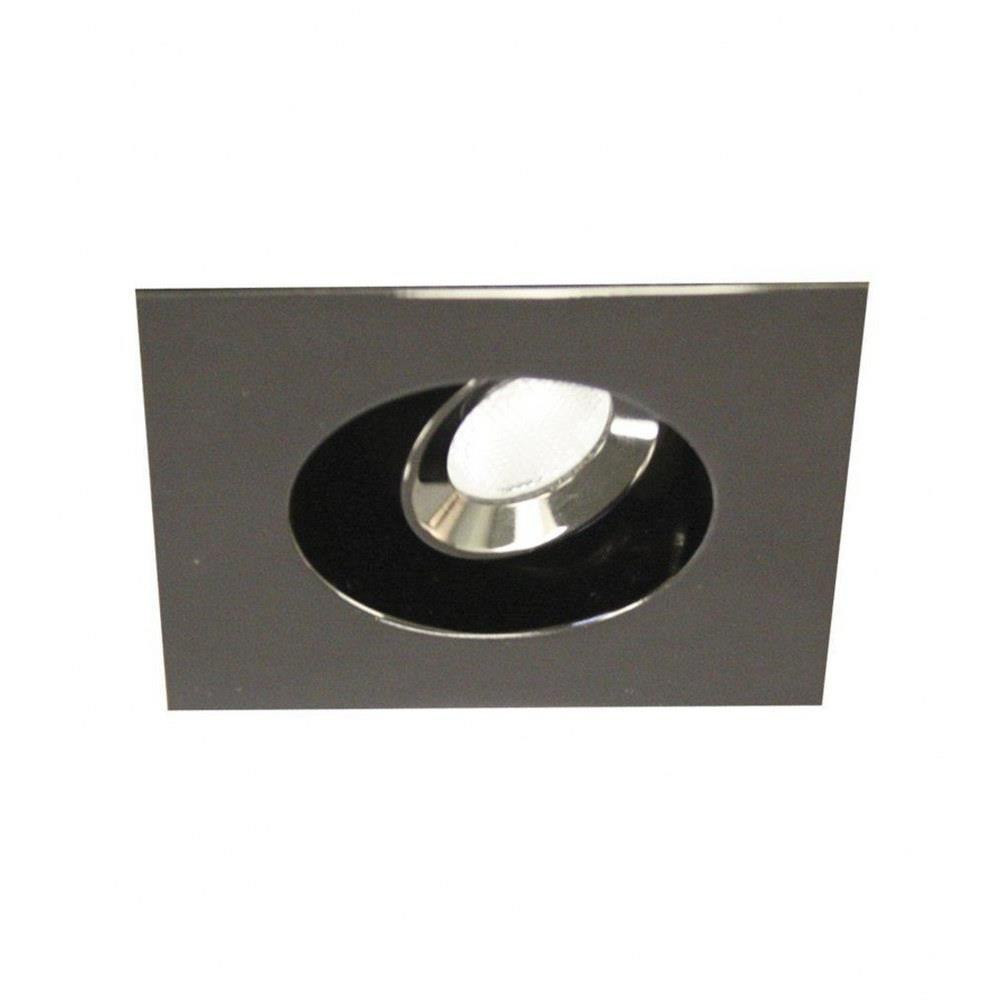

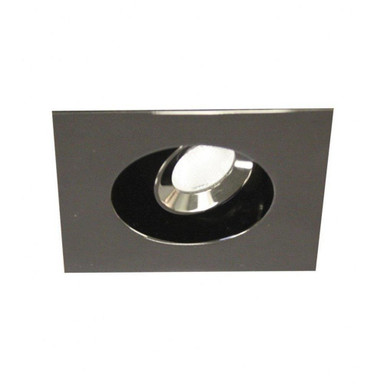

Perfect for ceilings, under cabinet and wall niches. LED Miniature Recessed Downlights offer a super low profile and die cast aluminum trim with a 25 degree cutoff angle for comfortable general and task lighting.

Need help deciding which product is right for your space? Check out our WAC Buying Guide For Expert Advice

Important Note: Driver Required: LD-700MA03-EDIM-IS or LD-700MA09-EDIM-IS

•


Quality Construction:

• Die cast aluminum construction trim, available in multiple finish options.
• Black solid steel housing included.
• LED lamp and insulated wires pre-installed within housing, with wires leading out for connection to a remote driver.
• Two heavy gauge inner retention clips push out onto the mounting surface to firmly hold the fixture in place.
• Accommodates surfaces up to 3/4in thickness and a 2.5in cutout.
• Approved for use in non-IC ceiling applications.
• Sold as new construction, may be re-configured as a remodel on the field.
• Up to 3 fixtures can be installed on a 9W remote driver.
• Available in adjustable, Downlight, round, and square trims.
• Smooth and continuous dimming to 10% with an electronic low voltage (ELV) dimmer.

Lighting Specifications:

• High Powered LED
• Voltage: 12V
• Power: 3W
• Color Temperature: 3000
• Lumens: 249
• CRI: 85
• Rated Life: 87000 Hours
• Beam Spread: 36
• Shade Included: Yes
• Dimmable: Yes
• Driver Required: LD-700MA03-EDIM-IS or LD-700MA09-EDIM-IS

Ratings / Certifications / Warranty:

• Standards: UL, cUL Listed for damp locations
• Warranty: 5 Years Functional / 2 Years Finish
